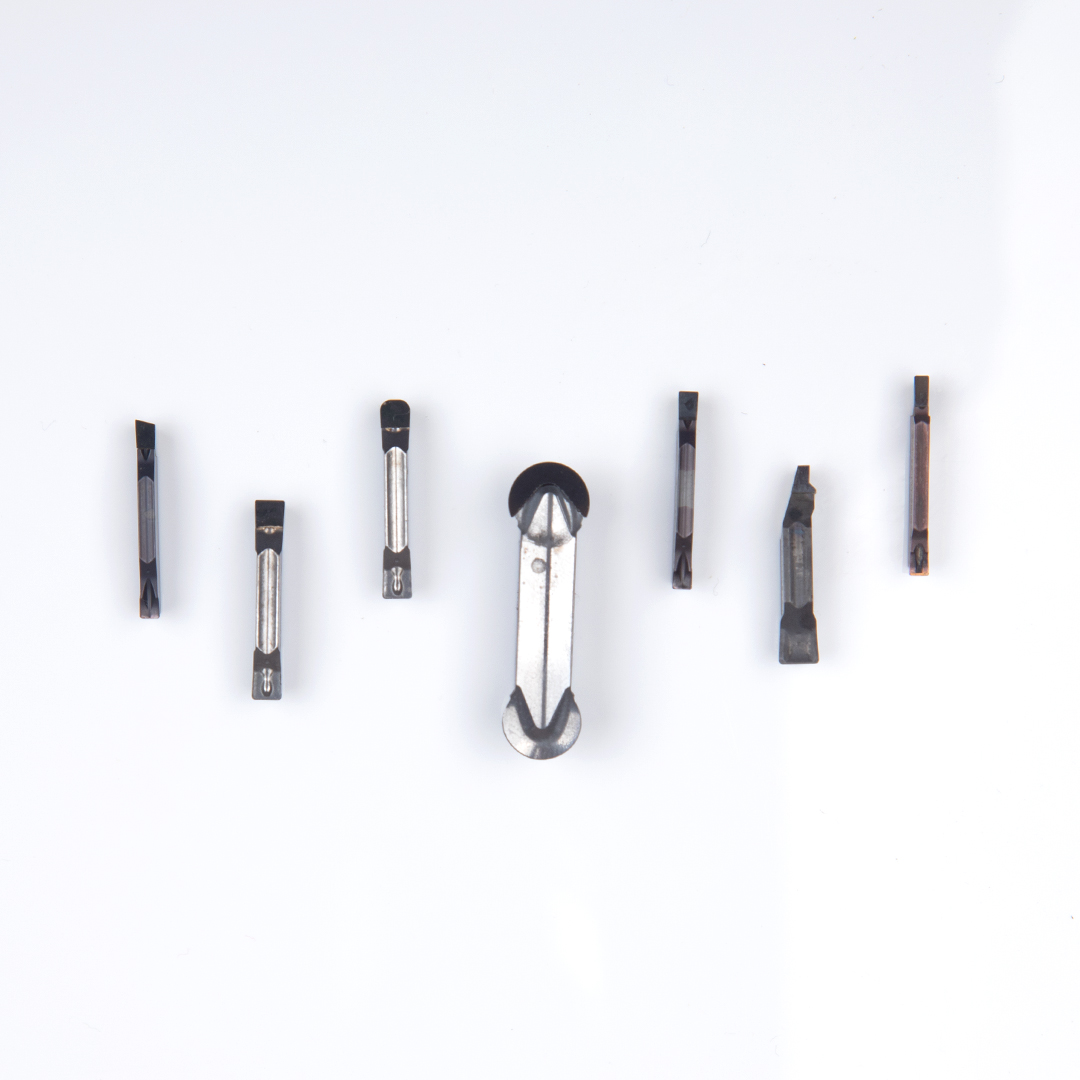

PCBN Grooving Insert
Owing to our vast knowledge and in-depth experience of this domain, we have been able to offer an extensive array of the best quality of Polycrystalline Diamond Cutting Tools. Offered cutting tools are widely used in metal working for cutting, reaming and grinding purposes. These Polycrystalline Diamond Cutting Tools are manufactured from high pressure and high temperature hydraulic press. Features: Optimum grinding efficiency Fine finish Require minimum maintenance
Order NowFor Customization
Product Details
PCBN
Grooving Inserts – Overview
????
What is a PCBN Grooving Insert?
A PCBN (Polycrystalline Cubic
Boron Nitride) grooving insert is a cutting insert used in grooving,
parting, and profiling operations on ferrous materials,
especially hardened steels, cast irons, and powdered metals.
PCBN is the second hardest cutting material after diamond and is
designed specifically to handle steel and iron alloys that diamond (PCD)
cannot cut.
????
Key Features:
|
Feature |
Description |
|
Cutting Material |
PCBN (binder + CBN particles
sintered under high pressure) |
|
Body Material |
Carbide substrate |
|
Insert Geometry |
Grooving profiles (ISO standard
and custom) |
|
Coating |
Often uncoated (CBN does not need
coatings like carbide) |
|
Insert Widths |
Typically 1.0 mm to 6.0 mm or
custom |
|
Mounting Style |
Clamped in grooving tool holders
(e.g. ISO: GTN, GCN, etc.) |
????
Ideal Materials:
- Hardened Steel (HRC 45–70)
- Cast Iron (Gray, Ductile, CGI)
- Powdered Metals
- Tool Steel
- Bearing Steel
- Superalloys (in some grades)
✅
Advantages of PCBN Grooving Inserts
- Outstanding wear resistance in hard materials
- High thermal stability
- Maintains edge sharpness over long cycles
- Capable of high-speed and dry machining
- Excellent dimensional control in tight
tolerances
❓
PCBN Grooving Insert – FAQ (Top 10 Questions)
1.
What does PCBN stand for?
Polycrystalline Cubic Boron Nitride—a synthetic material second only to diamond in hardness but
designed for ferrous materials.
2.
What materials are PCBN grooving inserts best for?
They are ideal for hardened steel
(HRC >45), gray and ductile cast iron, sintered metals,
and tool steels.
3.
Can PCBN grooving inserts be used on aluminum or copper?
No. For non-ferrous materials, use PCD
inserts. PCBN is specifically for ferrous materials.
4.
What are the typical applications for PCBN grooving inserts?
- Internal and external grooves
- Parting-off hardened shafts
- Face grooving on cast iron
- Snap ring grooves in hard steel
- Precision slots in powder metals
5.
Are PCBN inserts indexable like carbide?
Yes. Many PCBN inserts come in indexable
form and can be rotated to use multiple cutting edges.
6.
How does PCBN compare to carbide in grooving hardened materials?
PCBN lasts 5 to 50 times longer
than carbide in hard turning or grooving, especially in dry or semi-dry
cutting.
7.
Can PCBN grooving inserts be used dry?
Yes. PCBN performs extremely well in
dry machining, especially in hardened steel applications.
8.
Do PCBN inserts come in different grades?
Yes, there are different PCBN
grades depending on:
- CBN content
(higher for wear resistance, lower for toughness)
- Binder type
- Coated vs. uncoated
9.
Can PCBN inserts be re-sharpened?
Typically no—PCBN is
extremely hard and resharpening is impractical. However, custom tools
can sometimes be reconditioned by specialized services.
10.
What industries commonly use PCBN grooving tools?
- Automotive
(transmission shafts, gears, bearing grooves)
- Aerospace
(hardened alloy grooving)
- Tool & Die
(hard turning of molds)
- Heavy Equipment
(engine blocks, housings)
