PCBN Special Cutting Tools - Overview

PCBN (Polycrystalline Cubic Boron Nitride) is one of the hardest materials available, second only to diamond. It's primarily used in specialized cutting tools for machining hard and difficult-to-machine materials. PCBN cutting tools are particularly beneficial in industries that require high precision and efficiency, such as aerospace, automotive, and tool manufacturing.

Key Features of PCBN Special Cutting Tools:

Material Composition:

• PCBN is made of a synthetic mixture of boron nitride crystals. It has excellent thermal stability, wear resistance, and hardness, making it an ideal choice for cutting hard materials like hardened steel and cast iron.

• It is commonly bonded with a carbide substrate for added toughness.​

Applications:

• Hard Turning: Perfect for machining hardened steels (48-70 HRC), as well as materials such as high-alloy steels, tool steels, and superalloys.

• Cast Iron Machining: PCBN tools are particularly effective when working with cast irons, which can be difficult to machine using traditional materials.

• Non-Ferrous Metals: Suitable for machining hard materials such as copper, brass, and bronze, although not typically for soft metals like aluminum.

Advantages:

• Exceptional Wear Resistance: PCBN tools last longer than traditional carbide or high-speed steel tools, even under high temperatures.

• High Cutting Speeds: Due to its thermal stability, PCBN tools can handle high cutting speeds, reducing cycle times and increasing productivity.

• Superior Surface Finish: The sharp cutting edges and high hardness allow for excellent surface finishes on tough materials.

• Minimal Tool Wear: PCBN’s toughness allows it to maintain its cutting edge even in demanding environments, reducing downtime and tool change frequency.

Limitations:

• Not Suitable for Soft Materials: PCBN is not effective on softer materials such as aluminum, copper, or brass because it can wear out quickly.

• Brittleness: The extreme hardness of PCBN makes it brittle under certain conditions. Proper cutting parameters are essential to prevent breakage.

Types of PCBN Inserts:

1. Tipped Inserts: PCBN is brazed onto a carbide substrate, which reduces cost and is ideal for general hard turning operations.

2. Solid PCBN Inserts: Entirely made of PCBN, these provide the highest wear resistance and are used for precision machining of extremely hard materials.

3. Grooving and Parting Inserts: Designed specifically for grooving and parting applications in hard machining.

4. Threading Inserts: Specially designed for high-precision threading operations on hardened materials.

PCBN Special Cutting Tools Applications:

• Tool Steels & Hardened Components: PCBN tools are especially suited for turning hardened components in automotive and aerospace applications, such as crankshafts, gears, and molds.

• High-speed Cutting: The hardness and thermal stability allow PCBN tools to cut at much higher speeds, improving efficiency and reducing overall production time.

  PCBN Special Cutting Tools: Frequently Asked Questions (FAQ)

  1. What are PCBN Special Cutting Tools?

  PCBN Special Cutting Tools are cutting tools made from Polycrystalline Cubic Boron Nitride, an ultra-hard material produced by sintering CBN grains under high pressure and temperature. These tools are specifically designed for machining hard and abrasive materials, offering exceptional hardness and wear resistance.​

  2. What materials can be machined with PCBN Special Cutting Tools?

  PCBN Special Cutting Tools are suitable for machining:

  • Hardened steels (typically >48 HRC)

  • Cast irons (gray, ductile, and compacted graphite)

  • Powdered metals

  • Superalloys

  • Exotic alloys

  • Tool steels

  • Die steels

  • Bearing steels

  • High-speed steels​pcdgrinding.cn+2Asime+2AIP Publishing+2Asime+3moresuperhard.com+3shapemastertool.com+3ynw-diamond.com+2pcdgrinding.cn+2Asime+2 These materials benefit from PCBN's high wear resistance an

  d thermal stability.​

  3. What are the advantages of using PCBN Special Cutting Tools?

  The key benefits include:

  • Exceptional Wear Resistance: PCBN's hardness allows for extended tool life in demanding applications.

  • High Thermal Stability: Maintains performance at elevated temperatures, suitable for high-speed machining.

  • Superior Surface Finish: Produces high-quality surface finishes, essential for precision components.

  • Chemical Inertness: Resistant to chemical reactions with ferrous materials, reducing tool wear.

  • Versatility: Effective in both roughing and finishing operations.​

  4. Are there any limitations to PCBN Special Cutting Tools?

  Yes, while PCBN Special Cutting Tools offer numerous advantages, they have limitations:

  • Brittleness: PCBN is more brittle compared to other materials, making it susceptible to chipping under certain conditions.

  • Cost: PCBN Special Cutting Tools are generally more expensive than carbide tools.

  • Not Suitable for Non-Ferrous Materials: PCBN is not recommended for machining non-ferrous materials like aluminum due to its chemical reactivity.​

  5. How do I choose the right PCBN Special Cutting Tool?

  Consider the following factors:

  • Material Hardness: Ensure the tool grade matches the hardness of the workpiece material.

  • Insert Geometry: Select the appropriate tool shape and size for the specific machining operation.

  • Grade Selection: Choose a PCBN grade that aligns with the machining conditions and desired surface finish.

  • Machine Capabilities: Verify that your machine can handle the cutting speeds and feeds associated with PCBN machining.​

  6. What are the common types of PCBN Special Cutting Tools?

  Common PCBN Special Cutting Tool types include:

  • Boring Tools: Designed for internal machining operations.

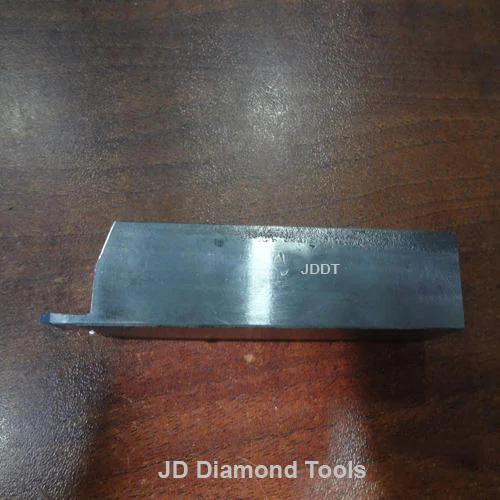

  • Grooving Tools: Used for creating grooves in workpieces.

  • Milling Cutters: Suitable for milling operations on hard materials.

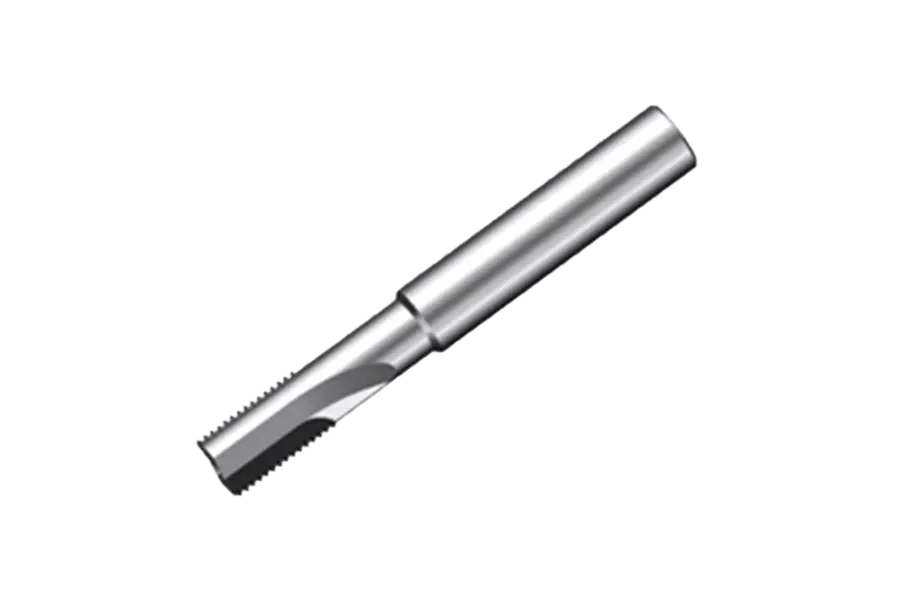

  • Threading Tools: For producing threads on workpieces.

  • Turning Tools: Used for external turning operations.

  • Special Inserts: Customized tools for specific applications.​

  7. How do I maintain PCBN Special Cutting Tools?

  To prolong the life of PCBN Special Cutting Tools:

  • Avoid Impact Loads: Prevent sudden impacts that can cause chipping.

  • Proper Tool Setup: Ensure correct alignment and secure clamping to minimize vibrations.

  • Use Appropriate Cutting Parameters: Adhere to recommended cutting speeds and feeds to prevent excessive wear.

  • Regular Inspection: Monitor tools for signs of wear or damage and replace as necessary.​

  8. Can PCBN Special Cutting Tools be reconditioned?

  Yes, PCBN Special Cutting Tools can be reconditioned by skilled professionals. Reconditioning involves reshaping the tool's cutting edge to restore its performance. This process can be cost-effective, especially for high-quality tools.​

  9. What are the safety considerations when using PCBN Special Cutting Tools?

  When using PCBN Special Cutting Tools:

  • Wear Protective Gear: Use safety glasses and gloves to protect against debris.

  • Proper Handling: Handle tools carefully to prevent damage to the cutting edges.

  • Machine Safety: Ensure all machine safety features are operational and follow standard operating procedures.

  • Training: Ensure operators are trained in the specific requirements of using PCBN tools.​

  10. Where can I purchase PCBN Special Cutting Tools?

  PCBN Special Cutting Tools are available through various channels:

  • Authorized Distributors: Many manufacturers have authorized distributors who stock their products.

  • Online Marketplaces: Platforms like Amazon and specialized industrial marketplaces offer a range of PCBN Special Cutting Tools.

  • Direct from Manufacturers: Some manufacturers sell directly to customers through their websites.
